Key Features
- Flow rate up to 600 lt/min
- Head up to 25 mt
- Operating temperature max 70°C
- Operating pressure max 3 bar
- Motors from 0.4 HP to 6 HP - 700/900/1400 RPM
- AISI 304 high thickness stainless steel pump casing and synthetic rubber impeller
- Suitable for viscous liquids with suspended solids
Self-priming pump
The special design of the pump casing ensures an immediate suction, even when running dry, up to a depth of 5/6 metres
Delicate pumping action
The low speed motor ensures a gentle pumping action for delicate liquids, and a continuous and regular flow
Suitable for viscous liquids
The shape of the impeller allows the pump to handle viscous fluids with suspended solids
High thickness pump casing
High thickness steel (3/4mm) which ensures a higher mechanical and corrosion resistance, and therefore a longer life
Easy to dismantle
The cleaning and replacement of the mechanical seal and of the impeller are incredibly simple as the pump can be taken apart with ease
Flow reversibility
The direction of rotation of the motor can be reversed to ensure a total flow reversibility, with identical performance for both directions of rotation
Pump casing formed as a single piece
All pump casings are constructed from high thickness stainless steel sheet metal, which ensures quality and long life. The pump casings undergo continuous quality controls of the welds and are internally and externally polished to ensure the highest level of hygiene
Impeller made of non-toxic rubber
The impeller is made of synthetic rubber (Neoprene or EPDM) and is entirely non-toxic and resistant to several acids. The Neoprene impeller complies with the American FDA regulations related to the handling of food grade liquids
The G series pumps have the following features:
- Immediate priming at a depth of up to 5 metres, even when running dry
- Flow reversibility
- Low speed motor, which ensures a gentle pumping action for delicate liquids
- Continuous and regular pumping action
- Capacity to handle viscous and solid-laden liquids
- High thickness steel (3/4mm) which ensures a higher mechanical and corrosion resistance, and therefore a longer life
- Monobloc pump casing casting for higher strength and a better seal
- The cleaning and replacement of the mechanical seal and of the impeller are incredibly simple as the pump can be taken apart with ease
- Flexible impeller made of entirely non-toxic synthetic rubber (Neoprene or EPDM) and resistant to different acids
- Mechanical seal made of NBR-graphite or NBR-tungsten carbide
These features make these pumps exceptionally versatile. They can be used in the chemical-pharmaceutical industry (starch, wax, water-based glues, creams, cleaners, glycerine, glycols, latex, vegetable and animal fats, liquid soaps, syrups, shampoos, industrial water treatment, paints) and in the wine-food industry (beer, butter, melted cheese, glucose, milk and condensed milk, jam, honey, must, oil, cream, tomato sauce, fruit juices, eggs, yogurt, wine, destemmed grapes, liquid sugar).

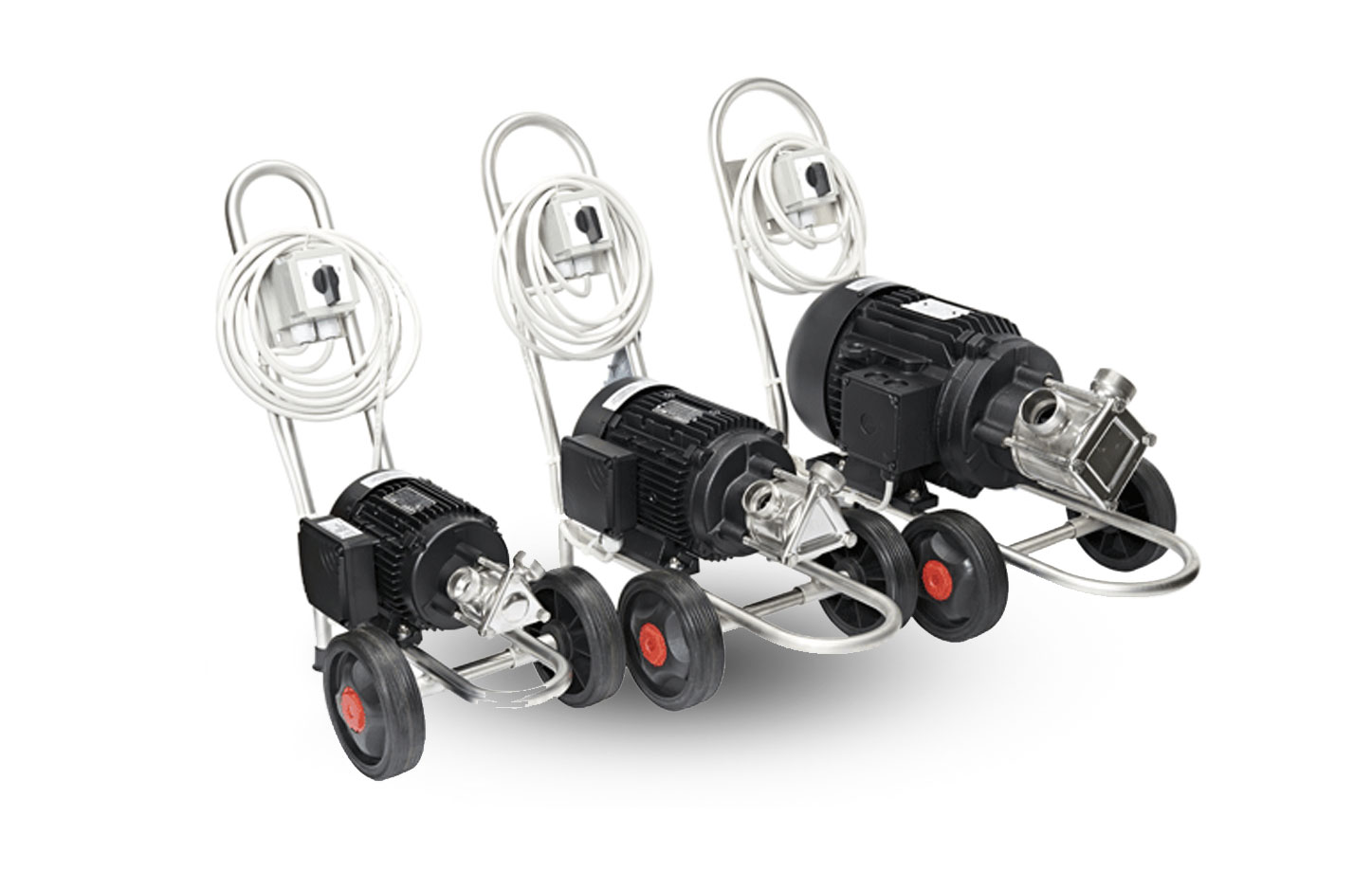

On request, pumps can be supplied on a stainless steel carriage fitted with a switch/rotation direction inverter.
The pumps can also be supplied with DIN 11851, Garolla or Macon fittings.
Technical Specifications
| MOD |
MOTOR |
FLOW RATE [lt/min] ± 5% |
Ø PORTS |
| HP |
KW |
RPM |
TYPE |
2 mt |
5 mt |
10 mt |
15 mt |
20 mt |
25 mt |
| G/60 |
0.4 |
0.3 |
700 |
Three-phase |
35 |
33 |
29 |
24 |
11 |
- |
Ø 1 ¼" gas male thread
or
Ø 40mm couplings |
| 0.75 |
0.55 |
900 |
Three-phase |
56 |
53 |
47 |
40 |
26 |
- |
| 1 |
0.75 |
1400 |
Three-phase |
76 |
73 |
67 |
61 |
52 |
40 |
| 1 |
0.75 |
1400 |
Single-phase |
76 |
73 |
67 |
61 |
52 |
40 |
| G/90 |
1 |
0.75 |
700 |
Three-phase |
79 |
74 |
64 |
53 |
40 |
20 |
Ø 1 ½" gas male thread
or
Ø 50mm couplings |
| 1.5 |
1.1 |
900 |
Three-phase |
106 |
101 |
93 |
82 |
68 |
41 |
| 1.5 |
1.1 |
900 |
Single-phase |
106 |
101 |
93 |
82 |
68 |
41 |
| 2.5 |
1.8 |
1400 |
Three-phase |
171 |
164 |
151 |
135 |
115 |
84 |
| G/120 |
3.5 |
2.6 |
700 |
Three-phase |
211 |
204 |
192 |
178 |
162 |
141 |
Ø 2" gas male thread
or
Ø 60mm couplings |
| 4 |
3 |
900 |
Three-phase |
280 |
272 |
257 |
241 |
222 |
200 |
| 6 |
4.5 |
1400 |
Three-phase |
435 |
428 |
415 |
403 |
391 |
378 |
| G/200 |
3.5 |
2.6 |
700 |
Three-phase |
422 |
393 |
341 |
279 |
200 |
- |
Ø 2" gas male thread
or
Ø 60mm couplings |
| G/200.1 |
5 |
3.7 |
700 |
Three-phase |
602 |
560 |
483 |
398 |
301 |
- |
Ø 2 ½" gas male thread
or
Ø 80mm couplings |
