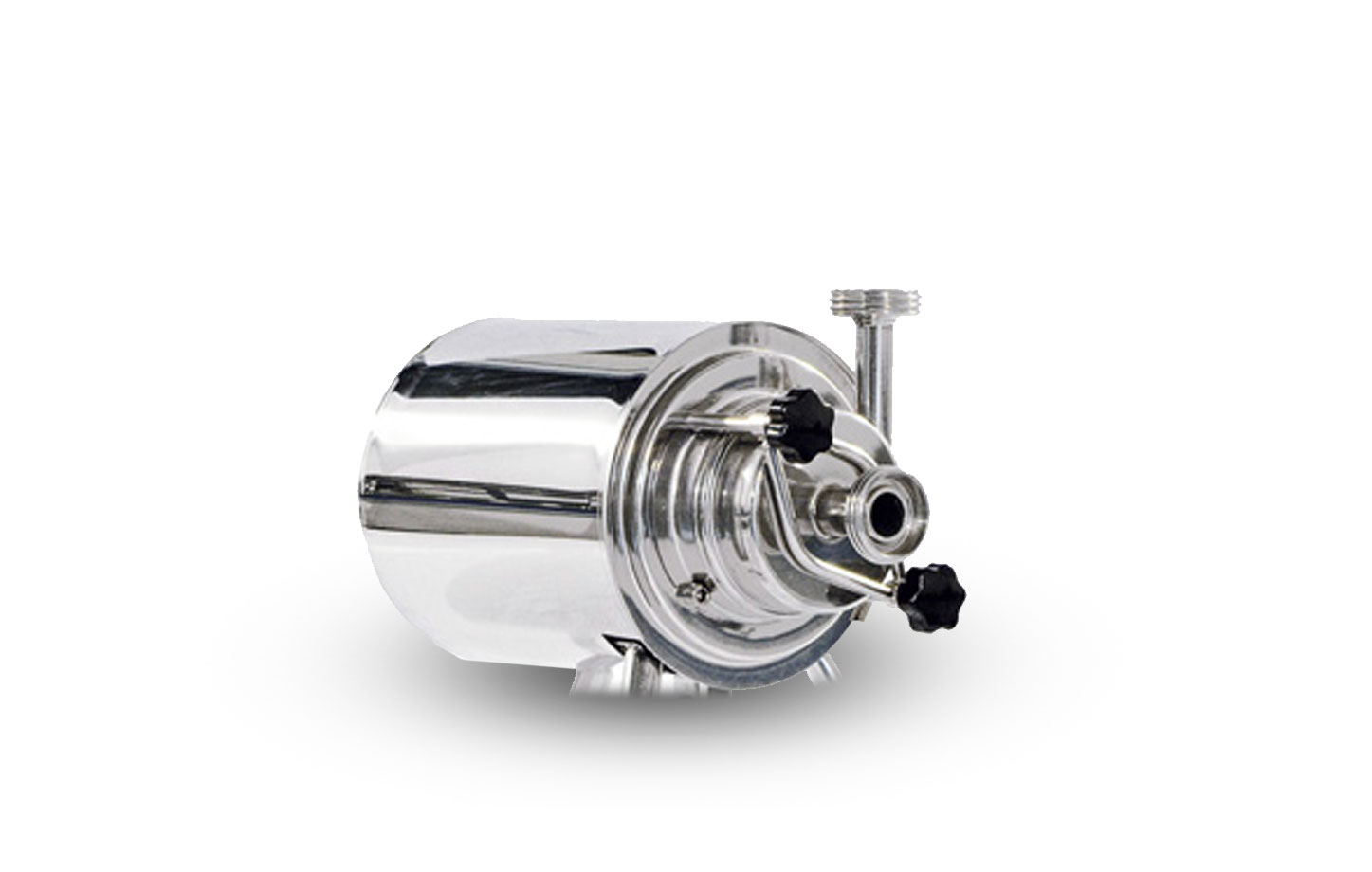

LT Sanitary centrifugal stainless steel pump

Key Features

Flow rate up to 930 lt/min
Head up to 35 mt
Operating temperature max 80°C
Operating pressure max 6 bar
Motors from 0.35 HP to 7 HP - 1400/2800 RPM
Entirely made of AISI 316 high thickness stainless steel
Suitable for food grade liquids

Maximum hygiene The pump casing is internally and externally polished to ensure the highest level of hygiene and no build-up of sediment inside the pump External cover On request, the pump is available with a stainless steel enclosure to protect the motor and a base with supporting feet Small size Extremely compact and lightweight pump, still maintaining its performance and practicality Easy to dismantle The cleaning and replacement operations of the mechanical seal and of the impeller are incredibly simple as the pump can be taken apart with ease Reduced speed Some models are supplied with a 1400 RPM motor, which ensures a softer and more gentle pumping action Standard motors Motors compliant with IEC 72 UNEL-MEC standards, widely available in all national and international markets

Stainless steel impellers This series of pumps can be fitted with an axial flow impeller for handling filamentous and solid-laden liquids and with an open-type impeller to ensure a higher hydraulic efficiency

Wide operating range The LT series pumps can be fitted with 4 different pump casings to cater for a wide range of applications. They are designed to provide a flow rate from few litres to 900 litres per minute, with heads up to 35 metres

The LT series pumps have the following features:

Pump casing and internal components made of AISI 316 stainless steel sheet metal
All pump components are internally and externally polished to ensure the highest level of hygiene and a good hydraulic efficiency
The inside of the pump has been designed to prevent the build-up of the pumped product, which could compromise its hygiene
The pump can be easily taken apart and cleaned, without having to resort to special equipment
The 1400 RPM versions ensure a more gentle pumping action for delicate or easily emulsifiable liquids
Lightweight and compact construction thanks to its monobloc design
Motors compliant with IEC 72 UNEL-MEC standards, widely available in all national and international markets should they need to be replaced or repaired
Mechanical seal with EPDM elastomers

The LT series pumps are widely used in the food industry, where the highest level of hygiene and ease of dismantling for cleaning operations are paramount. On request, the pump is supplied with a stainless steel enclosure to protect the motor and with a base fitted with feet to support the pump. The pumps are supplied with DIN 11851 fittings as standard or, on request, with Gas thread, Macon or Garolla.

MOD	MOTOR			FLOW RATE [lt/min] ± 5%													Ø PORTS
MOD	HP	RPM	TYPE	0 mt	1 mt	2 mt	3 mt	5 mt	10 mt	11 mt	12 mt	15 mt	20 mt	25 mt	30 mt	35 mt	INLET DIN	OUTLET DIN
LT 200	0.35	1400	Three-phase	110	93	71	30	-	-	-	-	-	-	-	-	-	Ø 25	Ø 25
LT 200	1	2800	Three-phase	-	-	-	-	200	155	143	129	61	-	-	-	-	Ø 25	Ø 25
LT 300	1.5	1400	Three-phase	241	225	207	185	109	-	-	-	-	-	-	-	-	Ø 40	Ø 25
LT 300	3	2800	Three-phase	-	-	-	-	359	314	304	294	261	193	82	-	-	Ø 40	Ø 25
LT 500	3	1400	Three-phase	731	709	687	662	607	386	289	-	-	-	-	-	-	Ø 50	Ø 40
LT 500	5.5	2800	Three-phase	-	-	-	-	697	608	589	570	510	397	263	83	-	Ø 50	Ø 40
LT 1000	3	1400	Three-phase	927	881	832	781	666	289	194	94	-	-	-	-	-	Ø 65	Ø 65
LT 1000	7.5	2800	Three-phase	-	-	-	-	798	700	680	659	593	475	346	206	58	Ø 65	Ø 65
